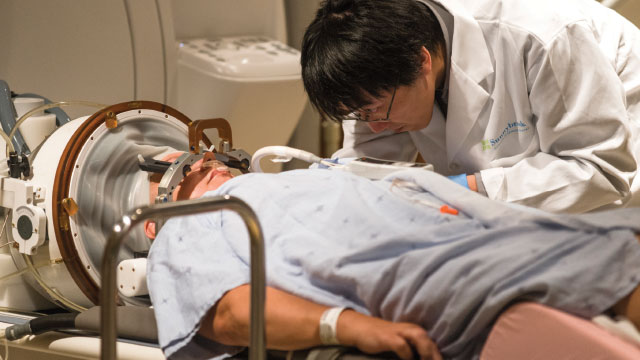

On a fall day in 2015 at Sunnybrook hospital in Toronto, a dozen people huddled in a small room peering at a computer screen. They were watching brain scans of a woman named Bonny Hall, who lay inside an MRI machine just a few feet away. Earlier that day, Hall, who had been battling a brain tumor for eight years, had received a dose of the chemotherapy drug doxorubicin. She was then fitted with an oversized, bowl-shape helmet housing more than 1,000 transducers that delivered ultrasound pulses focused on nine precise points inside her brain.
Just before each pulse, her doctors injected microscopic air bubbles into a vein in her hand. Their hope was that the microbubbles would travel to the capillaries of the brain and, when struck by the sound waves, oscillate. This would cause the blood vessels near Hall’s tumor to expand and contract, creating gaps that would allow the chemotherapy drug to escape from the bloodstream and seep into the neural tissue. Finally, she received an injection of a contrast medium, a rare-earth metal called gadolinium that lights up on MRI scans. Now, doctors, technicians, and reporters crowded around to glimpse a series of bright spots where the gadolinium had leaked into the targeted areas, confirming the first noninvasive opening of a human’s blood-brain barrier (BBB).
“It was very exciting,” says radiology researcher Nathan McDannold, who directs the Therapeutic Ultrasound Lab at Brigham and Women’s Hospital in Boston and helped develop the technique that uses microbubbles and ultrasound to gently disturb blood vessels. Doctors typically depend on the circulatory system to carry a drug from the gut or an injection site to diseased areas of the body, but when it comes to the brain and central nervous system (CNS), the vasculature switches from delivery route to security system. The blood vessels of the CNS are unlike those throughout the rest of the body. Their basic units—endothelial cells—are endowed with a suite of unique properties that prevent passage of more than 90 percent of small-molecule drugs and nearly all biologics through or between the cells. Certain proteins seal spaces between cells, for example, and molecular pumps oust unwanted molecules that make their way into the endothelial cells before those substances have a chance to migrate through the blood-vessel cells and into the CNS.
More security lies just outside the vasculature. As is the case for most blood vessels throughout the body, the endothelial cells are surrounded by a layer of extracellular matrix proteins and supported by cells called pericytes, which control blood vessel development. But in the CNS, the density of pericytes is nearly 100 times higher than elsewhere in the body. CNS endothelial cells are further covered by the pseudopods, or false feet, of neural cells called astrocytes. Both pericytes and astrocytes provide an extra barrier and influence the expression of genes, such as those encoding components of tight junctions, that make CNS blood vessels so selective.
That day at Sunnybrook hospital, however, the focused ultrasound technique proved successful in breaching this formidable barrier. “We worked on this for 15 years doing animal studies, and we’re at the point where it’s ready to go to the clinic,” says McDannold.
Although Hall’s procedure was a milestone, and could pave the way for targeted, noninvasive drug delivery to the brain, it was hardly the first time the BBB had been opened for a medical purpose. For decades, physicians have used hyperosmotic solutions that cause endothelial cells to shrink throughout the brain-adjacent vasculature, opening gaps that allow drugs to pass through. Procedures that bypass the BBB by directly injecting a drug into brain tissue or into cerebral-spinal fluid (CSF) using catheters have also been in use since the 1990s. But researchers such as McDannold are looking for less invasive and more-precise ways to get in. Some want to open the BBB at specific locations and defined times to treat conditions such as brain tumors; others aim to leave it intact while delivering daily treatments for diseases such as Alzheimer’s. To achieve these goals, researchers are developing a diverse set of strategies, each designed to circumvent or exploit the unique features that give the BBB its strength and selectivity.
Sneaking past the guards
To design ways to breach the BBB, researchers first have to understand it. Biomedical engineer Peter Searson has spent decades meticulously acquiring the necessary technologies and methodologies to reverse-engineer a three-dimensional facsimile of the human BBB, complete with fluid flow to represent the shear force supplied by blood. He and his team at Johns Hopkins University have gradually increased their model’s complexity, first deriving the required cell types from human induced pluripotent stem cells, then determining the most appropriate cell culture conditions to achieve the desired phenotypes. In 2015, for example, they finally worked out a way to culture human astrocytes in a 3-D gel matrix without activating the cells’ stress response, which would alter the expression of certain genes in the astrocytes and other BBB cell types.1 The next step is to culture stress-free astrocytes and pericytes together.
See “Designing In Vitro Models of the Blood-Brain Barrier”
“We’re just about at the point now where we can start combining everything we’ve learned,” Searson says. Still, he doesn’t think this complex model will be complete for at least another decade or two. That’s because the BBB is more than just a couple of extra layers around blood vessels.
“A real naive view is that the BBB is just a wall,” agrees Richard Daneman, a neuroscientist at the University of California, San Diego. “It is a whole series of physical properties that allow the vessels to control what goes between the blood and the brain.”
One of the most prominent of those properties is the presence of tight junctions, protein structures that button up the membranes of neighboring endothelial cells near their blood-facing, or luminal, ends. In most areas of the body, nutrients reach organs by slipping between blood vessel endothelial cells. Tight junctions in the brain vasculature restrict the flow of molecules from the blood to the CNS. “Even water molecules can’t make it through these cracks,” says Ronald Cannon, a molecular biologist at the National Cancer Institute.
Tight junctions seem to be where ultrasound and microbubbles work their magic. In 2008, Sunnybrook biophysicist Kullervo Hynynen and his colleagues showed in rats that, in the presence of microbubbles, focused ultrasound waves not only increased leakiness in brain vessels for up to four hours, but also reduced the abundance of the tight junction proteins occludin, claudin-5, and zona occluding (ZO)-1. As a result, a large molecule called horseradish peroxidase, which usually can’t get past the BBB, started to slip in between blood vessel endothelial cells and into the rats’ brains.2
McDannold, who was a graduate student in Hynynen’s lab at Brigham and Women’s Hospital in the 1990s, says there’s still a lot of work to do to understand the mechanisms behind the focused ultrasound procedure—and to demonstrate its safety—but the concept has come a long way. “The idea of using ultrasound to disrupt the BBB goes back to the 1960s,” he says. “At that time, it would either be associated with damage in the brain or it would not be reproducible.” He and Hynynen spent several years trying to apply focused ultrasound in a safe and controlled manner, but they kept running into the problem of damaging the tissue with heat produced by the sound waves. Then, in 2001, they had the idea to try microbubbles, commercially available as a tool to light up blood vessels in MRI images. “To be honest, the first experiment we did, we caused massive damage in the brain,” McDannold says of their initial tests on rabbits. “That’s when we realized these bubbles are really focusing the effect of the ultrasound right on the vessel walls,” allowing the researchers to dramatically reduce the ultrasound’s acoustic power while still achieving the BBB breach.3
Since then, both McDannold and Hynynen have continued to refine the procedure in animal models and to detail its mechanisms. In a study published last year, McDannold’s team used focused ultrasound combined with microbubbles to deliver anti-HER2 antibodies to the brains of 10 rats with breast cancer tumors that had metastasized to the organ.4 The antibody slowed brain tumor growth in four of the rats that received the ultrasound treatment. “We didn’t see [slowed growth] at all without the ultrasound,” says McDannold.
Hynynen’s group also used the method in a mouse model of Alzheimer’s disease and showed that simply opening the BBB in the hippocampus was enough to reduce amyloid-β plaque levels and improve the animals’ spatial memory.5 They found that opening the barrier allows endogenous anti–amyloid-β antibodies into the brain, leading astrocytes and microglia to gobble up more of the toxic protein.6
The technique is also being tested in humans. In addition to a Phase 1 brain cancer trial using Bonny Hall’s treatment that began in 2015, this year researchers at Sunnybrook began testing the safety of using focused ultrasound to open the BBB in the frontal lobes of patients with Alzheimer’s disease. And McDannold is working toward getting US Food and Drug Administration (FDA) approval for human trials in the U.S.
In the meantime, McDannold, Hynynen, and others are developing ways to monitor sound waves that bounce off the microbubbles and adjust the ultrasound power mid-treatment to prevent blood vessel damage. So far, Hynynen’s team has shown they can do this in rodent models and rhesus macaques. If the technique can be proven safe for humans, especially when used repeatedly, McDannold says, there’s a long list of conditions that may benefit from such treatment. “If you knew exactly where you wanted [drugs] to go in the brain, we could direct them, but that’s a long ways away.”
Over, under, around, and through
For now, the microbubble-and-ultrasound method is simply too risky for most patients. “The brain has the BBB there specifically to protect it from foreign compounds—it’s a defense mechanism,” says Choi-Fong Cho, a neuroscientist at Brigham and Women’s Hospital. For non-deadly diseases, “we want to keep the BBB intact while we deliver our drugs so that we don’t risk affecting the brain in other ways.”
Fortunately, many carefully crafted small drugs can cross the BBB without any disruption. “When you’re thinking about how to get a molecule across, you have to think about [the BBB’s] endogenous properties,” says Daneman. After all, he says, “the goal [of the BBB] isn’t to keep [all] molecules out of the CNS,” but to regulate which are allowed to pass and when. If a molecule is soluble in both blood and in lipids, for example, it can dissolve into a cell’s lipid membrane and work its way through the cell and out the other side to reach the brain. Molecules such as oxygen, alcohol, and most anesthetics do this all the time, as do nearly all current CNS drugs. There are many ways to tinker with a drug’s charge and lipophilicity, but the success of such tailoring is hit-or-miss depending on the compound, says Cho. “There’s no secret recipe to make something that crosses the BBB.”
Companies rely on screening drugs in vitro, often using a canine kidney cell line because, like the BBB, kidney cells express tight junctions. Researchers can also obtain endothelial cells from human brain tissue removed during surgery, but when cultured alone, these cells quickly lose their identity and stop expressing tight junctions. Recognizing a need for a simple and accurate screening platform, Cho and her colleagues have developed a spheroid model that allows mouse endothelial cells, pericytes, and astrocytes to interact in a 3-D matrix, preventing the endothelial cells from losing their identity. The cells tend to self-assemble so that the astrocytes are in the center of each sphere, with pericytes on the outside and endothelial cells in between.7 Although the layering is different from what is seen in vivo, the spheroids faithfully recapitulate some BBB functions. Cho’s team showed that while the spheroids let carbon dioxide, oxygen, and alcohol into their centers, they exclude a sugar molecule called dextran, just as would be expected by the BBB.
Importantly, the endothelial cells in the spheroids produce tight junction proteins, two membrane receptors characteristic of the BBB, and a functional efflux pump called permeability glycoprotein (P-gp). Expression of P-gp is a helpful feature because small molecules that do breach an artificial BBB often fail miserably in animal models, where the pump spits them right back into the blood vessel. P-gp is the most common of the BBB efflux pumps, which collectively bind and export 60 percent to 70 percent of small-molecule drugs. “It’s a big problem,” says Cannon. “It’s one of the reasons why drugs don’t make it to market.”
In a study published in April, Cannon and his colleagues reported that they could temporarily inhibit P-gp’s activity.8 Using capillaries cut out of rat brains, they tested agents for their ability to increase or decrease P-gp’s activity, and found that a phospholipid called lysophosphatidic acid (LPA) and the antidepressant amitriptyline can together reduce the ability of P-gp to pump a fluorescent substrate into the capillaries’ interior. The effect occurred within minutes of exposure to the drugs, and disappeared almost as fast once the drugs were removed. “That reversibility is important,” says Cannon, so that the BBB can resume its normal function after allowing the drug into the brain.
Cannon’s team tested both LPA and amitriptyline on brain capillaries from a rat model of amyotrophic lateral sclerosis (ALS), in which P-gp expression is increased, and found that injecting the drugs into the animals’ carotid arteries increased the amount of substrate that made it across the BBB and into the brain, indicating that the treatment reduced the pump’s activity. Cannon says he hopes others could make use of the properties of these compounds to revisit drugs that cross the BBB but have been shelved because they get immediately removed from the brain by P-gp. Used clinically, drugs that interrupt efflux pump activity could be helpful in getting drugs into the brain without the risks of disturbing the integrity of the BBB.
Trojan horses
Many of the BBB’s specialized features are not designed to keep molecules out, but to bring them into the CNS. The brain needs sugar, certain amino acids, and electrolytes, says Cannon, “and we have transport systems set up for that.” Specifically, BBB endothelial cells have channels, protein transporters, and receptors that chaperone nutrients right through endothelial cells, all of which allow the passage of vital molecules such as ions, sugars, and amino acids into the CNS. In some instances, a therapy may be a natural substrate of one of these transporters—that’s the case for the Parkinson’s drug L-dopa, an amino acid that uses the large neutral amino acid transporter type 1 to get into the brain, where it is converted into dopamine. But in theory, researchers could dress up any drug to be recognized by a transporter or receptor to trick the brain into taking it up.
For example, it’s possible to decorate nanoparticle-based drugs with a transporter’s natural substrate. A company in the Netherlands called 2-BBB Medicines developed a technique that incorporates the antioxidant glutathione into a liposome membrane, allowing the liposome and its drug cargo to be taken into endothelial cells through a glutathione transporter. Using these glutathione-spiked liposomes to encase doxorubicin, the researchers got nearly five times more of the chemotherapeutic drug into the brains of treated rats9 and the technique limited brain tumor growth in mice.10 The company is now testing the liposomes in people with brain tumors and as a means to deliver a steroid across the BBB of people with multiple sclerosis and other inflammatory CNS diseases.
See “Penetrating the Brain”
Other pharmaceutical companies are trying to attach therapeutic compounds to receptors that actively bear cargo into, across, and out of cells through a process called transcytosis, allowing the drugs to “piggyback” their way into the CNS. A popular target for this approach, the transferrin receptor, brings iron into the CNS by transporting iron’s carrier protein, transferrin. Rather than mimic iron or transferrin, which would throw off the cells’ iron homeostasis, many research groups have turned to antibodies that glom onto the receptor outside of the transferrin-binding pocket. Some of the antibodies tote along a drug, while in other cases the antibody itself is the drug, designed to bind both the transferrin receptor and a disease target. For example, a team at Genentech has tested an antibody that binds the transferrin receptor and β-secretase, an enzyme that cleaves an amyloid-β precursor. The antibody accumulated in the brains of cynomolgus monkeys and reduced amyloid-β levels in the animals’ CSF and brain tissue.11
Northwestern University chemist Chad Mirkin is taking a completely new route into the brain. Twenty years ago, Mirkin’s team developed a unique class of gene therapy drugs called spherical nucleic acids (SNAs), which consist of densely packed DNA or RNA arranged on the surfaces of gold nanoparticles. Mirkin says that when his team began injecting the SNAs into mice, they realized the particles quickly spread throughout the body, including the brain. “We have the reverse problem that everyone else has,” he says. “They go everywhere.”
In a study published in 2013, his group demonstrated that in mice with brain tumors SNAs crossed the BBB and accumulated in the cancerous tissue, where they delivered siRNAs to knock down expression of the oncogene Bcl2L12.12 Now, a mere four years later, clinical researchers at Northwestern are teaming up with the National Cancer Institute to test this approach in people with glioblastoma. Back in the lab, Mirkin’s team found that cell cultures of astrocytes internalize SNAs using a group of receptors called scavenger receptors that bind to a variety of ligands with repetitive patterns, but he says they haven’t uncovered the precise route that the particles take through the BBB.
As another strategy to sneak drugs into the brain, some scientists are taking advantage of a class of viruses that naturally penetrate the BBB. In 2009, Brian Kaspar, who studies gene therapy at Ohio State University, and colleagues reported that a strain of adeno-associated virus called AAV9 they injected into the bloodstreams of mice crossed the BBB and reached the animals’ spinal cords, accumulating in the motor neurons of newborns and astrocytes of adults.13 “We don’t know exactly which receptor it binds to cross,” says Harvard Medical School microbiologist Casey Maguire. “But we do know it goes across [the BBB] by transcytosis.” As a result, AAV9 can get through cultured BBB endothelial cells without disrupting the cells’ characteristic features, such as tight junctions, Maguire’s group showed recently.14
The 2009 study spurred numerous other researchers to begin using AAVs to traverse the BBB, and Kaspar, in addition to his position at Ohio State, now serves as the chief scientific officer of AveXis, a company that launched in 2010 to develop the use of AAV9 to deliver the SMN gene to the motor neurons of children with spinal muscular atrophy type 1. Earlier this year, AveXis released the results of an ongoing Phase 1 trial, which showed that most of the 15 children in the trial are reaching motor milestones—such as sitting unassisted—that patients with spinal muscular atrophy type 1 usually don’t reach.
Good as those results are, says Maguire, the evidence now points to other viruses as better drug-delivery vehicles for crossing the BBB, at least in mouse models. “What’s coming out of the pipeline now makes AAV9 look not efficient at all,” he says. Specifically, researchers are evolving viruses with qualities that make them ideal for triggering their uptake into the brain. They do this by injecting a virus into animals, isolating whatever virus gets into the brain, then repeating the process again and again. Recently, a team led by Viviana Gradinaru at Caltech isolated a strain of AAV9 that reached brain and spinal cord tissues of mice 40 times more efficiently than the original version of the virus.15
Other groups are making use of immune cells that naturally traverse the BBB during inflammation. For example, a team of researchers from MIT and the University of North Carolina at Chapel Hill recently constructed nucleus-size polymer “backpacks,” which they attached via antibodies to mouse macrophages before injecting the cells into the bloodstreams of mice with brain inflammation.16 The macrophages were attracted to the inflammatory environment in the brain and brought along the backpacks. The researchers also described proof-of-concept studies in cell cultures that showed that the backpacks could be constructed to carry and release an antioxidant enzyme, suggesting the approach could potentially be used to deliver protein therapeutics to the brain.
So whether it’s using immune cells, viruses, or nanoparticles studded with natural substrates of BBB transporters or receptors, drugs may be able to sneak their way past the formidable barrier without ever disturbing its normal function. Such approaches may be key to delivering therapies to the brain without the safety issues associated with more-invasive or damaging techniques, but they come with the trade-off of losing the ability to target drugs to precise locations. “In some diseases, you might want the drug everywhere; in others you might want it specifically localized to specific brain regions,” says Daneman. He adds that there is still a lot of work to be done to determine how much drug each technique can get into the CNS and how long different treatments will last. “All these things will determine whether a strategy will work.”
